Variable list
Nominal wall thickness of tubesheet at the tubed area, without considering of gasket grooves or relief grooves.
Local reduction of thickness at the periphery of the tubesheet
A local reduction of thickness at the periphery of the tubesheet for a gasket groove or a relief groove is permitted, provided that the remaining analysis thickness, ea,p , is at least equal to 0,8 times the assumed thickness, e , of the tubesheet (see Figure 13.4.2-1):

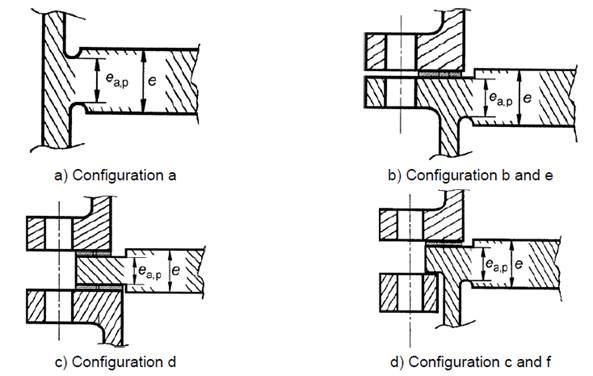

Figure 13.5.2-1 Local reduction of thickness at tubesheet periphery
Welded acc. Fig. 13.12.3-1
Fig. 13.12.3-1 - Tube welded to the outer tubesheet face with machined grooves
Welded acc.:
- Fig. 13.12.4-1
Fig. 13.12.4-1 - Inserted tube welded to the inner tubesheet face having machined grooves
- Fig. 13.12.5-1
Fig. 13.12.5-1 - Partially inserted tubes welded to the inner tubesheet face
- Fig. 13.12.6-1
Fig. 13.12.6-1 - Tube butt welded to the inner tubesheet face with hub
- Fig. 13.12-7-1
Fig. 13.12.7-1 - Tubes butt welded to the inner tubesheet face with machined groove

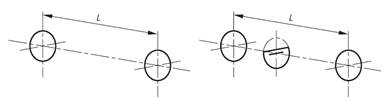

1 baffle and not all tubes supported per one baffle or no baffle
Fig. 13.9.3-1 (a)

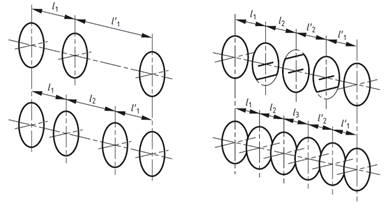

1 or multiple baffles and all tubes supported per one baffle
Fig. 13.9.3-1 (c)

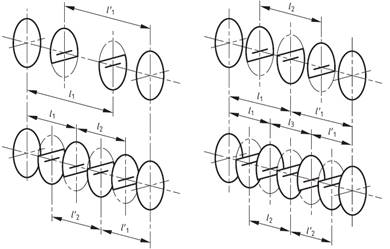

Multiple baffles and not all tubes supported per one baffle
Fig. 13.9.3-1 (b)
(Diameter DJ corresponds to diameter Di in Figure 14.1-1)
Fig. 14.1-1
Metric ISO Standard Thread DIN 13-1
UNC-Thread ANSI/ASME B1.1
Metric ISO Standard Thread DIN 13-1
|
Thread |
Core hole mm |
Area of the bolt core mm² |
|
M 1,0 |
0,78 |
0,48 |
|
M 1,1 |
0,83 |
0,54 |
|
M 1,2 |
0,93 |
0,68 |
|
M 1,4 |
1,08 |
0,92 |
|
M 1,6 |
1,22 |
1,17 |
|
M 1,8 |
1,42 |
1,58 |
|
M 2,0 |
1,57 |
1,94 |
|
M 2,2 |
1,71 |
2,30 |
|
M 2,5 |
2,01 |
3,17 |
|
M 3,0 |
2,46 |
4,75 |
|
M 3,5 |
2,85 |
6,38 |
|
M 4,0 |
3,24 |
8,24 |
|
M 4,5 |
3,69 |
10,69 |
|
M 5,0 |
4,13 |
13,40 |
|
M 6,0 |
4,92 |
19,01 |
|
M 7,0 |
5,92 |
27,53 |
|
M 8,0 |
6,65 |
34,73 |
|
M 9,0 |
7,65 |
45,96 |
|
M 10,0 |
8,38 |
55,15 |
|
M 11,0 |
9,38 |
69,10 |
|
M 12,0 |
10,11 |
80,28 |
|
M 14,0 |
11,84 |
110,10 |
|
M 16,0 |
13,84 |
150,44 |
|
M 18,0 |
15,29 |
183,61 |
|
M 20,0 |
17,29 |
234,79 |
|
M 22,0 |
19,29 |
292,25 |
|
M 24,0 |
20,75 |
338,16 |
|
M 27,0 |
23,75 |
443,01 |
|
M 30,0 |
26,21 |
539,54 |
|
M 33,0 |
29,21 |
670,12 |
|
M 36,0 |
31,67 |
787,75 |
|
M 39,0 |
34,67 |
944,06 |
|
M 42,0 |
37,13 |
1082,78 |
|
M 45,0 |
40,13 |
1264,82 |
|
M 48,0 |
42,59 |
1424,64 |
|
M 52,0 |
46,59 |
1704,81 |
|
M 56,0 |
50,05 |
1967,42 |
|
M 60,0 |
54,05 |
2294,46 |
|
M 64,0 |
57,51 |
2597,63 |
|
M 68,0 |
61,51 |
2971,54 |
|
Nominal diameter |
Outside diameter mm |
Core hole |
Area of bolt hole mm² |
|
#1 - 64 UNC |
1,854 |
1,50 |
1,77 |
|
#2 - 56 UNC |
2,184 |
1,78 |
2,49 |
|
#3 - 48 UNC |
2,515 |
2,05 |
3,30 |
|
#4 - 40 UNC |
2,845 |
2,27 |
4,05 |
|
#5 - 40 UNC |
3,175 |
2,59 |
5,27 |
|
#6 - 32 UNC |
3,505 |
2,77 |
6,03 |
|
#8 - 32 UNC |
4,166 |
3,42 |
9,19 |
|
#10 - 24 UNC |
4,826 |
3,82 |
11,46 |
|
#12 - 24 UNC |
5,486 |
4,47 |
15,69 |
|
1/4" - 20 UNC |
6,350 |
5,11 |
20,51 |
|
5/16" - 18 UNC |
7,938 |
6,55 |
33,70 |
|
3/8" - 16 UNC |
9,525 |
7,95 |
49,64 |
|
7/16" - 14 UNC |
11,112 |
9,30 |
67,93 |
|
1/2" - 13 UNC |
12,700 |
10,73 |
90,43 |
|
9/16" - 12 UNC |
14,288 |
12,15 |
115,94 |
|
5/8" - 11 UNC |
15,875 |
13,53 |
143,78 |
|
3/4" - 10 UNC |
19,050 |
16,46 |
212,79 |
|
7/8" - 9 UNC |
22,225 |
19,34 |
293,77 |
|
1" - 8 UNC |
25,400 |
22,15 |
385,33 |
|
1 1/8" - 7 UNC |
28,575 |
24,87 |
485,78 |
|
1 1/4" - 7 UNC |
31,750 |
28,05 |
617,95 |
|
1 3/8" - 6 UNC |
34,925 |
30,60 |
735,42 |
|
1 1/2" - 6 UNC |
38,100 |
33,70 |
891,97 |
|
1 3/4" - 5 UNC |
44,450 |
39,26 |
1210,57 |
|
2" - 4 1/2 UNC |
50,800 |
45,03 |
1592,55 |
|
2 1/4" - 4 1/2 UNC |
57,150 |
51,38 |
2073,38 |
|
2 1/2" - 4 UNC |
63,500 |
57,00 |
2551,76 |
|
2 3/4" - 4 UNC |
69,850 |
63,36 |
3152,97 |
|
3" - 4 UNC |
76,200 |
69,71 |
3816,63 |
|
3 1/4" - 4 UNC |
82,550 |
76,06 |
4543,63 |
|
3 1/2" - 4 UNC |
88,900 |
82,41 |
5333,96 |
|
3 3/4" - 4 UNC |
95,250 |
88,76 |
6187,63 |
|
4" - 4 UNC |
101,600 |
95,11 |
7104,64 |
