Examples
|
Diameter |
4000 |
mm |
|
Height |
8000 |
mm |
|
Wall thickness |
5 |
mm |
|
Filling |
Water at 50°C |
|
|
Positive operating pressure |
0.1 |
bar |
|
Shell material |
P265GH |
|
For example you can calculate the wind loads with the EC1 module (Eurocode 1 wind loads acc. to DIN EN 1991-1-4).

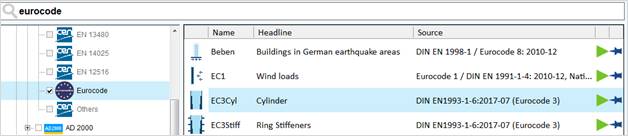

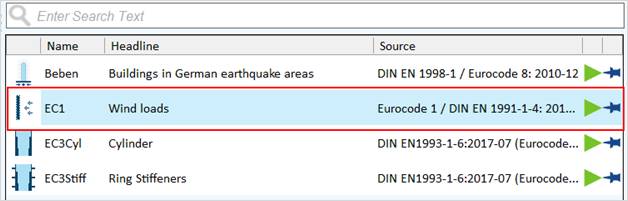

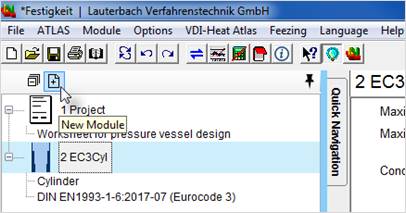

Start a new EC1 module from the “Project Explorer”‘ and enter the basic data.

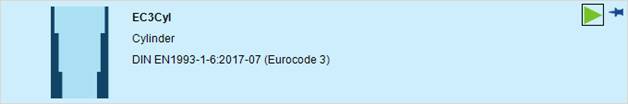

Connect the results ‚wind force‘ and ‚wind force moment‘ with the EC3Cyl module.
Value of buckling interaction check ≤ 1 !
Result of buckling interaction check: OK.
|
Diameter |
4000 |
mm |
|
Positive operating pressure |
0.1 |
bar |
|
Filing |
Water at 50°C |
|
|
Filling height |
11000 |
mm |
|
Shell material |
P265GH |
|
|

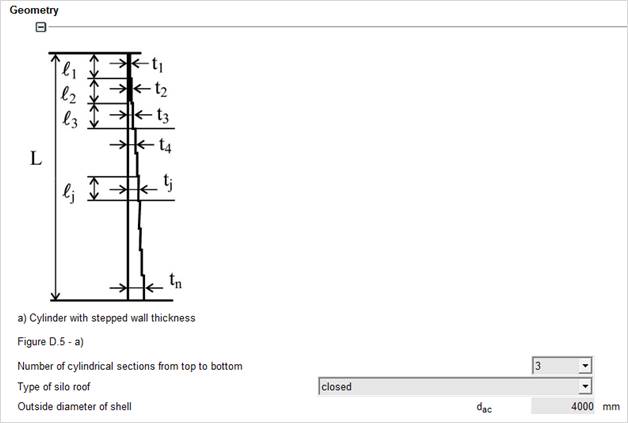

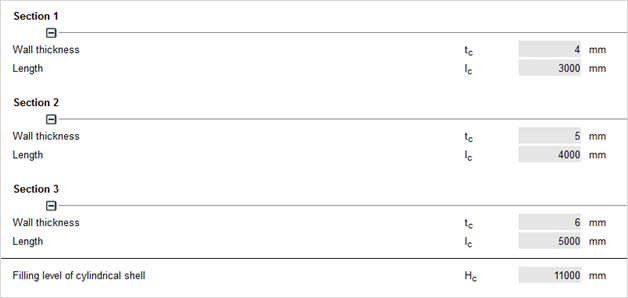

Section 1: |
|
|
|
Length |
3000 |
mm |
|
Wall thickness |
4 |
mm |
|
Section 2: |
|
|
|
Length |
4000 |
mm |
|
Wall thickness |
5 |
mm |
|
Section 3: |
|
|
|
Length |
5000 |
mm |
|
Wall thickness |
6 |
mm |
The user must determine factor Kappa (κ) by means of using the diagrams in figure D.6.
1.) la / L = 0,25 (calculated by the program)
2.) tc / ta = 1,5 (calculated by the program)
3.) tb / ta = 1,25 (calculated by the program)
Factor Kappa= 0.5 from diagram.

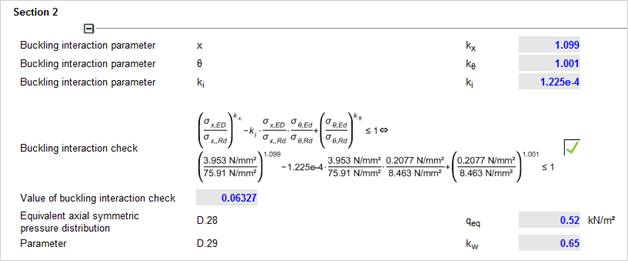

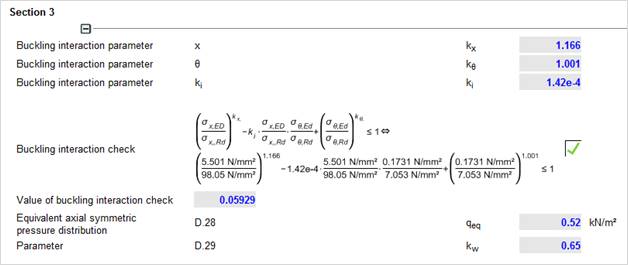

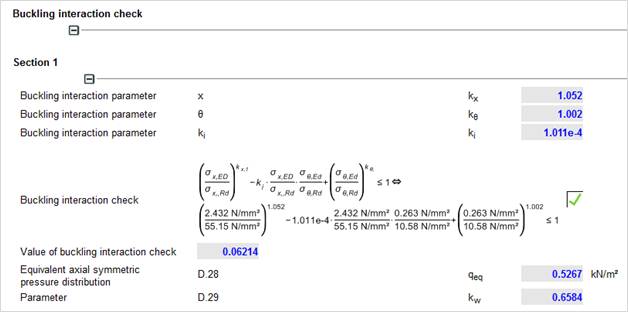

The buckling interaction checks are performed for all sections.
Values of all buckling interaction checks ≤ 1 !
Result of buckling interaction check: OK.
