EN 16.10 module

Legende

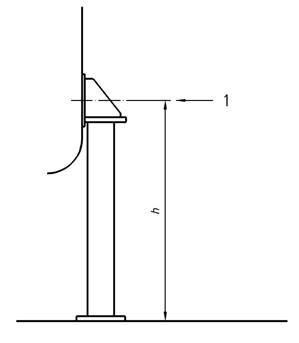

1 center of the bracket

NOTE  center of the bracket means the location of the horizontal neutral axis of bracket joint to shell or reinforcing plate.

Fig. 16.10-1a — Explanation of h
