EN 16.7 module

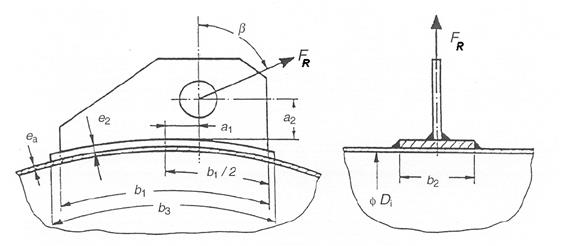

Fig. 16.7-1 — Longitudinal lifting lug

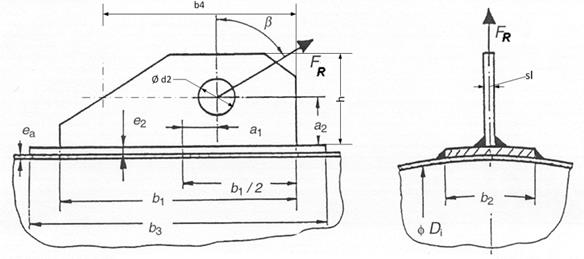

Fig. 16.7-2 — Tangential lifting lug

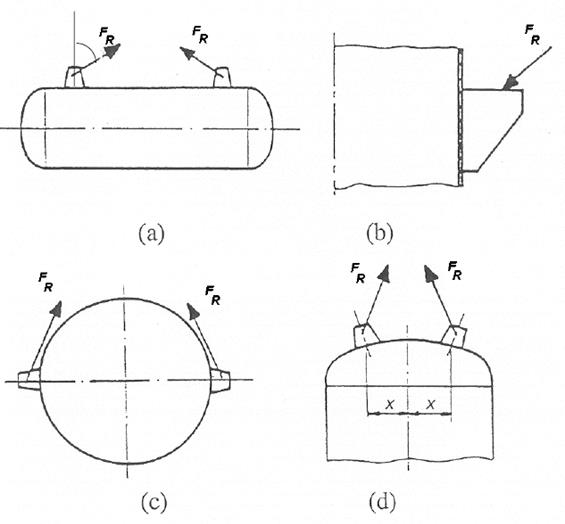

Arrangement of lifting lugs

Fig. 16.7-3 — Arrangement of lifting lugs

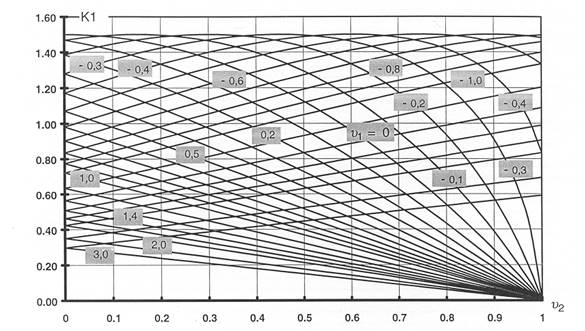

Factor K₁

Fig. 16.6-1 — Factor K₁

In this figure when ν₂< 0, the signs of ν₁ and ν₂ shall be changed simultaneously to determine K_1.

Factor K₁

Fig. 16.6-1 — Factor K₁

In this figure when ν₂< 0, the signs of ν₁ and ν₂ shall be changed simultaneously to determine K_1.

Factor K₁

Fig. 16.6-1 — Factor K₁

In this figure when ν₂< 0, the signs of ν₁ and ν₂ shall be changed simultaneously to determine K_1.

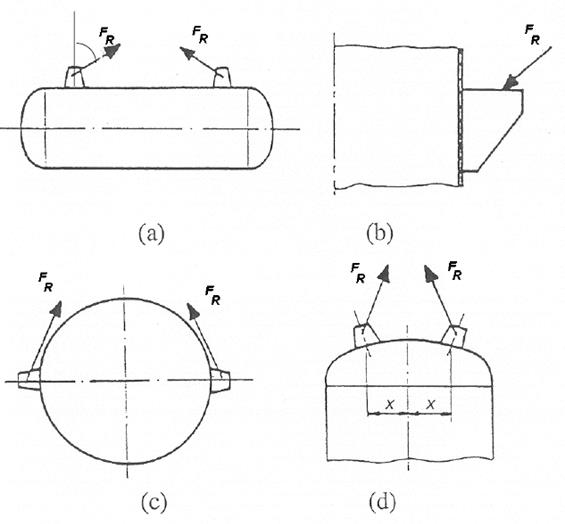

Arrangement of lifting lugs

Fig. 16.7-3 — Arrangement of lifting lugs

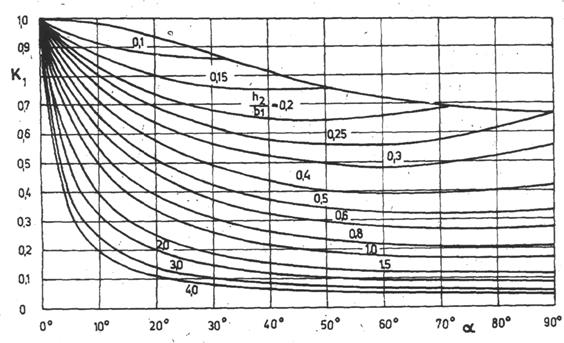

Coefficient K1 for e1=0 (RKF)
