EN 16.5 module

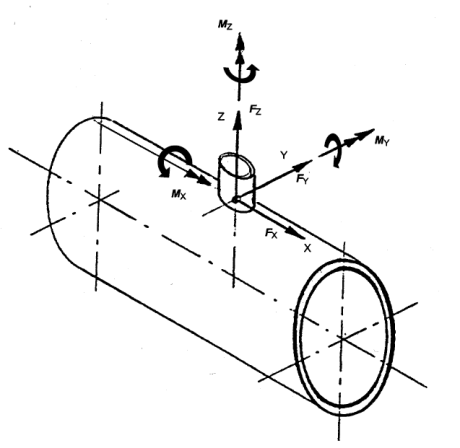

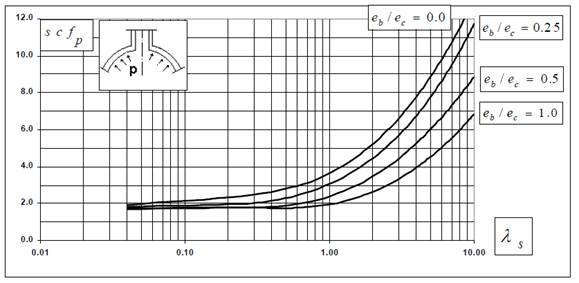

Moment and force vectors

Nozzles on vessels – Considering additional loads of piping attached to the vessel.

Bayer Werknorm 299 (PDF)

Variables

Variable 52 – Coefficient for axial load

Coefficient for axial load C1

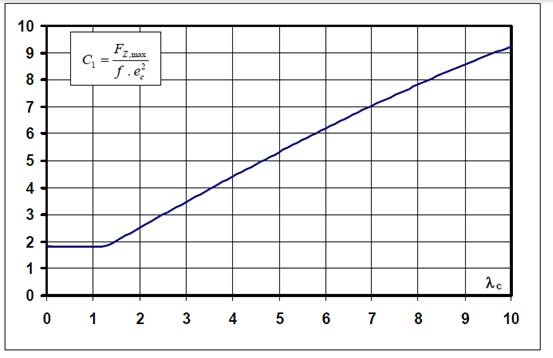

Fig. 16.5-2 — Graphical form of C1

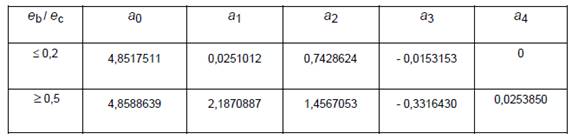

Table 16.5-1 — Coefficients for C1


Variable 53 – Coefficient for circumferential moment

Coefficients for C2

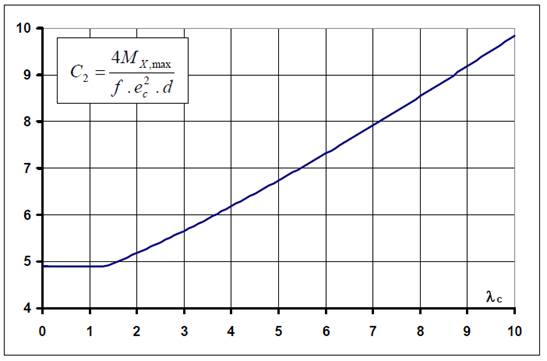

Fig. 16.5-3 — Graphical form of C2

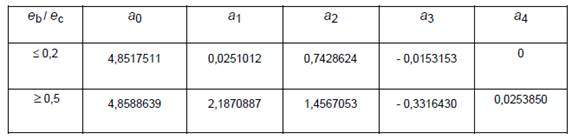

Table 16.5-2 — Coefficients for s C2

Variable 54 – Coefficient for longitudinal moment

Coefficients for longitudinal moment C3

Fig. 16.5-4 — Graphical form of C3


Table 16.5-3 — Coefficients for C3

Variable 99 – Coefficient for axial load - Nozzle

Coefficient for axial load C1

Fig. 16.5-2 — Graphical form of C1

Table 16.5-1 — Coefficients for C1

Variable 100 – Coefficient for axial load - Nozzle

Coefficients for C2

Fig. 16.5-3 — Graphical form of C2

Table 16.5-2 — Coefficients for s C2

Variable 101 – Coefficient for longitudinal moment - Nozzle

Coefficients for longitudinal moment C3

Fig. 16.5-4 — Graphical form of C3

Table 16.5-3 — Coefficients for C3

Variable 108 – Coefficient for axial load - Reinforcement

Coefficient for axial load C1

Fig. 16.5-2 — Graphical form of C1

Table 16.5-1 — Coefficients for C1

Variable 109 – Coefficient for circumferential moment - Reinforcement

Coefficients for C2

Fig. 16.5-3 — Graphical form of C2

Table 16.5-2 — Coefficients for s C2

Variable 110 – Coefficient for longitudinal moment - Reinforcement

Coefficients for longitudinal moment C3

Fig. 16.5-4 — Graphical form of C3

Table 16.5-3 — Coefficients for C3
