516D module

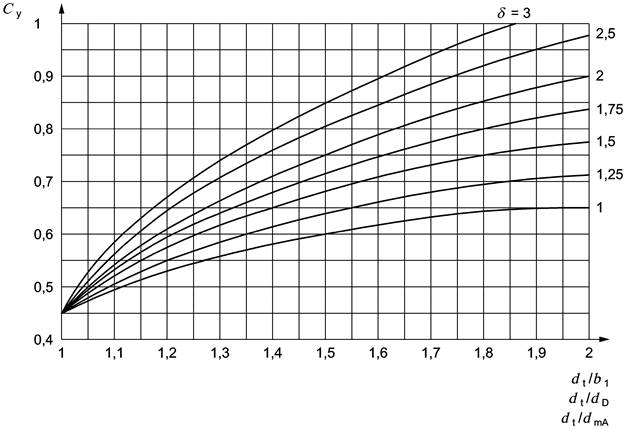

Fig. 23 — Design factor, Cy, for flat plates with an additional boundary moment acting in the same direction as the pressure load.

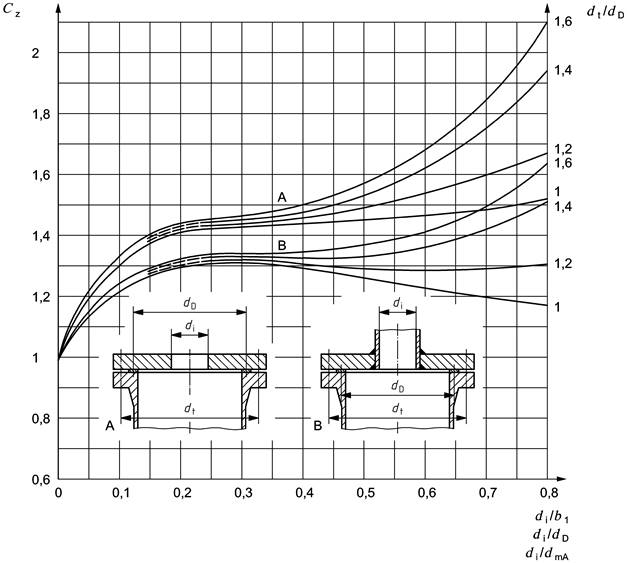

Fig. 24 — Opening factor, Cz, for flat plates with additional boundary moment
Type A
di Inside diameter of opening
dt pitch circle diameter
dD mean gasket diameter or seating diameter, dmA
e1 narrow side of elliptical end
Type B
di Inside diameter of opening
dt pitch circle diameter
dD mean gasket diameter or seating diameter, dmA
e1 narrow side of elliptical end

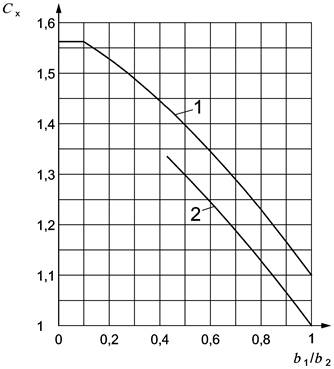

Fig. 25 — design factor, Cx, for rectangular (1) or elliptical flat (2) plates
Cx 1,0
Cy 1,0
Cz 0,35
δ see equation (64)

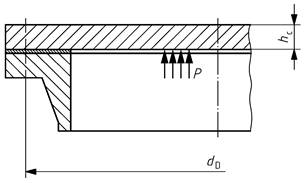

Fig. 26 — Cover (direct load) with full face gasket
Cx 1,0
Cy see Fig. 23
Cz 1,0
δ see equation (64)

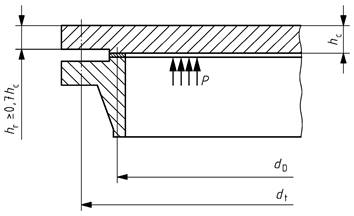

Fig. 27 —Cover (direct load) with gasket fully within bolt circle diameter

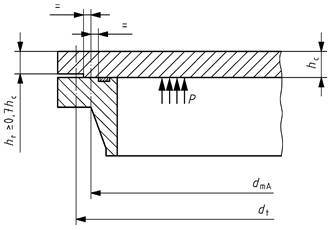

Fig. 28 — Cover (no direct load) with gasket fully within bolt circle diameter
Cx 1,0
Cy see Fig. 23
Cz 1,0
δ see equation (64)

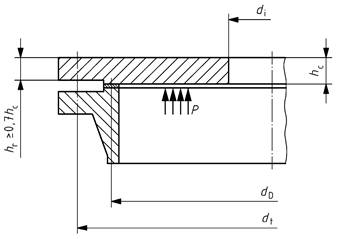

Fig. 29 — Cover (direct load) with gasket fully within bolt circle diameter
Cx 1,0
Cy see Fig. 23
Cz see Fig. 24
δ see equation (64)

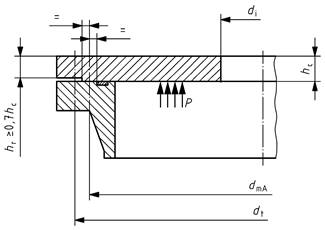

Fig. 30 — Cover (no direct load) with gasket fully within bolt circle diameter
Cx 1,0
Cy see Fig. 23
Cz see Fig. 24
δ see equation (64)

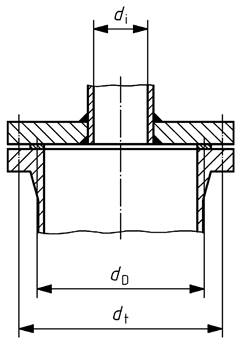

Fig. 31 — Cover with central nozzle and with gasket (direct load) fully within bolt circle diameter
Cx 1,0
Cy see Fig. 23
Cz see Fig. 24
δ see equation (64)

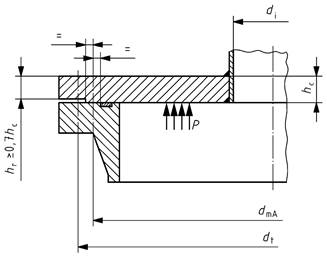

Fig. 32 — Cover with central nozzle and with gasket (no direct load) fully within bolt circle diameter
Fig. 32 — Cover with central nozzle and with gasket (no direct load) fully within bolt circle diameter
Cx 1,0
Cy see Fig. 23
Cz see Fig. 24
δ see equation (64)

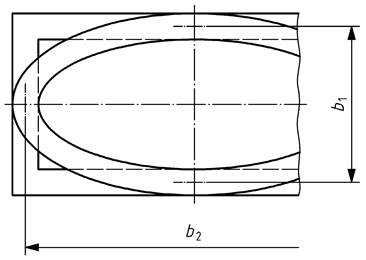

Fig. 33 — Diameter of elliptical covers
Cx see Fig. 25
Cy see Fig. 23
Cz see Fig. 24
δ see equation (64)

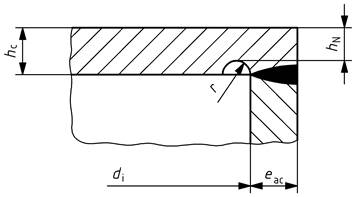

Fig. 35 — Flat plate with annular groove
s. Fig. 23 — Design factor, Cy, for flat plates
s. Fig. 24 — Opening factor, Cz, for flat plates with additional boundary moment
s. Fig. 25 — Design factor, Cx, for rectangular (1) or elliptical flat (2) plates
