NozzleSpecApp in IGEL module

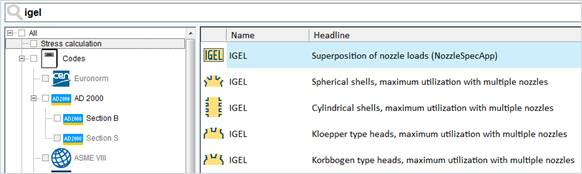

Start the IGEL module. Superposition of nozzle loads.

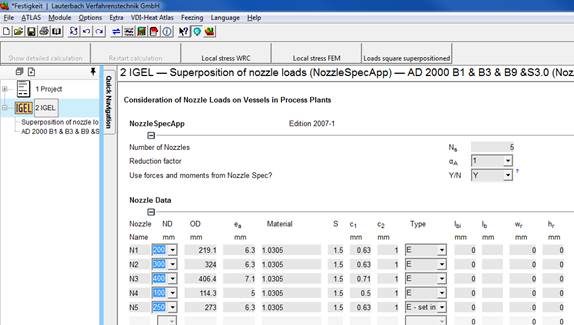

Enter the number of nozzles, their names, their material and their geometrical data in the input mask.

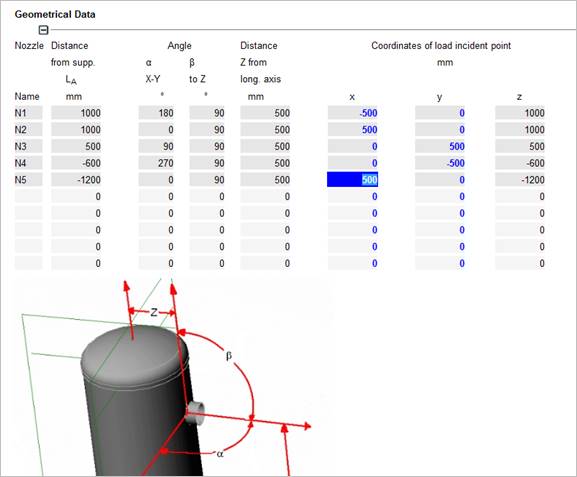

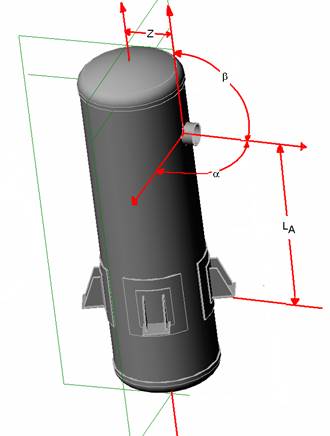

Complete your input by stating the position on the vessel.

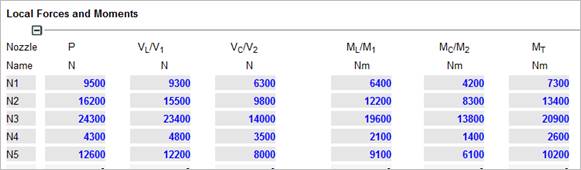

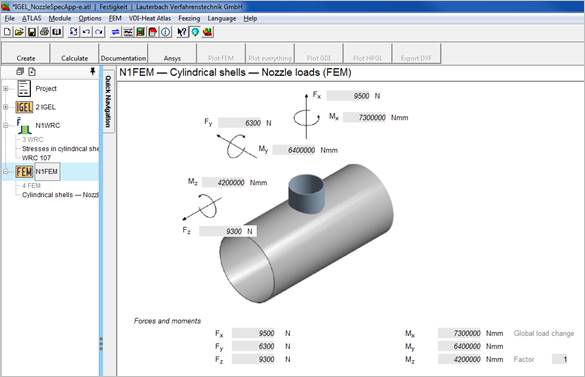

Forces and moments from the NozzleSpecApp are shown.

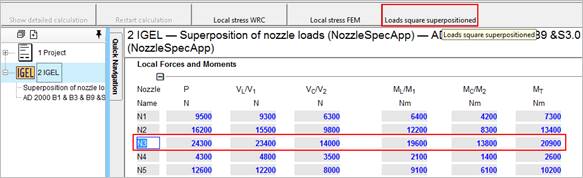

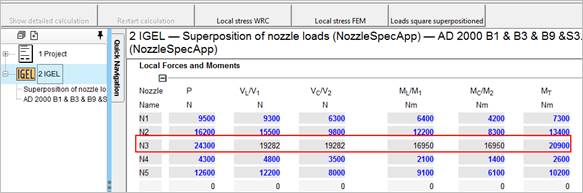

Highlight nozzles in the load area and press the button ‘Loads square superpositioned’!

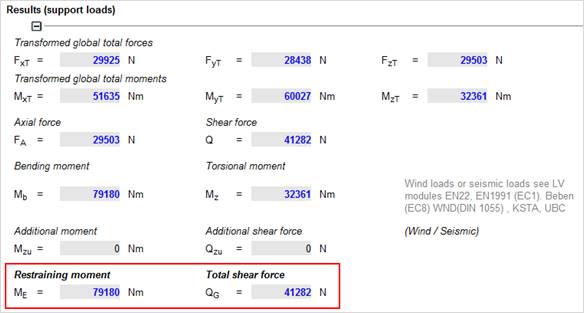

The restraining moment and the total shear force are calculated.

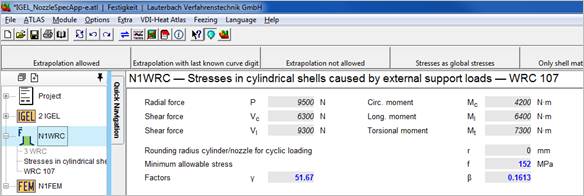

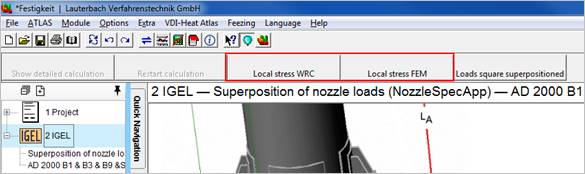

You may perform a proof of local stresses according to WRC or by means of using FEM for every nozzle by simply pressing a button.
