Product description

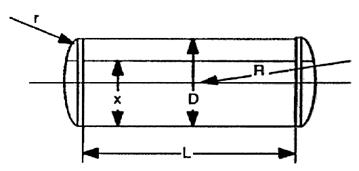

The TKL module calculates the filling level in vertical or slightly inclined horizontal storage tanks.

Calculations can be performed for the following types of ends:

·         Klöpper type

·         Korbbogen type

·         Semi spherical

·         Elliptical

The ends might be convex, concave or convex/concave.

The module calculates the coherences of vessel geometry, filling level and filling volume.

It does not matter if for example,

the volume is known and the filling level is calculated

or

the filling level is measured and the filling volume is calculated.

Not only the level / liquid volume but also filling times and evacuation times are being calculated which are necessary at given filling level flow, e.g. between high level alarm and maximum filling level.

Both modules can access all the calculation features of the ATLAS program system (every desired value can be calculated, performing parameter studies, interfaces to other calculation modules e.g. properties etc.) With the option 'parameter study’, bearing charts can be created and exported to EXCEL.
