Variables

Variable list

Variable 40 – Loads apply at

s. FEM Parameter

Variable 76 – Use Nozzle Specification?

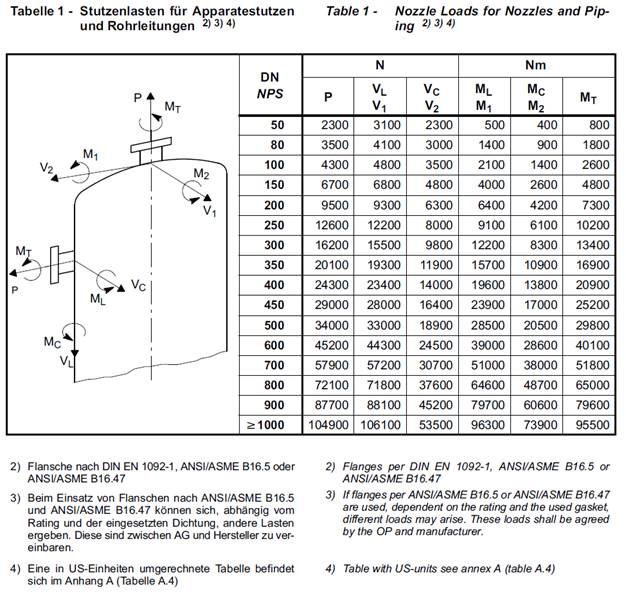

Forces and moments stated in the „NozzleSpecApp - Consideration of Nozzle Loads on Vessels in Process Plants“ are used.

Variable 166 – Ignore welding elements

s. Variable 167 –

Variable 167 – Weld size

The variable weld size defines the discontinuity between nozzle and shell. Usually this is the size of the weld in shell direction. This area can be excluded from the stress evaluation by using the tick box ‚Ignore welding elements‘.

The user must decide for himself whether he wants to consider these stresses or not.
